Eliminator Lighting SC8 II Pad System with Analog Lighting Controller System

Overview

Elevate your event with the Eliminator Lighting SC8 II Pad system—an Analog Lighting Controller that turns ordinary gatherings into extraordinary experiences. Designed for non-DMX lighting, this system allows you to effortlessly set the ambiance of your party or performance. Say goodbye to tangled cords and messy wires, allowing you to focus entirely on your show.

The SC8 II Pad features a user-friendly interface with 8 individual channel on/off toggle switches, including a flash option for each channel, ensuring you stay in complete control. Its high-quality construction guarantees durability, making it ideal for prolonged performances. Ready to use straight out of the box, the system includes the SC8 II Pad controller, SC8 II Pad RP relay pack, a 25ft. 3-pin DMX cable, and a 4ft. IEC power cord. Each relay pack has a 15A power capacity.

With features like rubber feet for desk use, 100-240V AC power, and a master on/off power switch, this controller system is a must-have for seamless lighting management. Elevate your setup, enhance your performance, and order the Eliminator Lighting SC8 II Pad system today.

Specifications

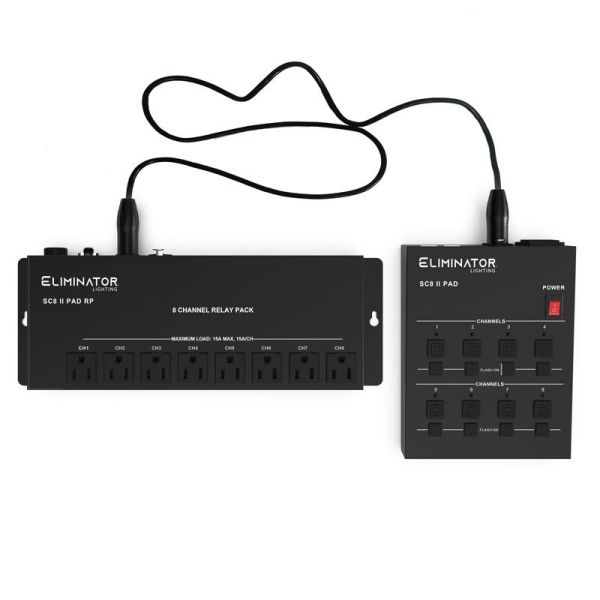

System Includes:

• 1x SC8 II Pad controller
• 1x SC8 II PAD RP (Relay Pack)
• 1x 25ft. 3-pin DMX Cable
• 1x 4ft. (1.2M) IEC Power Cord

SC8 II Pad Features:

• 8x Individual channel On / Off toggle switches
• 8x individual flash switches
• AC100-240V 50/60Hz power input with IEC inlet
• 2x USB outputs to charge mobile devices
• Master On/Off Power Switch
• 3-pin XLR Data Output
• Rubber Feet for Desk Use

SC8 II Pad RP Features:

• 8x Edison Power Outlets
• 15 AMPS Total Power Capacity (Per Relay Pack)
• 3-pin XLR Data In/Out to connect to additional relay pack
• Circuit Breaker Reset
• M10 Mounting Thread for clamp
• Safety Loop

Electrical:

• Power Input:
• SC8 II Pad: AC 100-240V, 50/60Hz
• SC8 II Pad RP: AC 100-120V, 60Hz
• Power Consumption:
• SC8 II Pad: AC 120V, 60Hz; 350mA; 20W
• AC 230v, 50Hz; 180mA; 21W
• SC8 II Pad RP: AC 100V, 60Hz; 15A; 1500W
• AC 120V, 60Hz; 15A; 1800W

Dimensions:

• SC8 II Pad - 7.75” x 5.9” x 2.25” / 197x150x57.9mm
• SC8 II Pad RP - 13.5” x 5” x 2” / 343x128x53.2mm
• Weight: 5 lbs. / 2.37 kgs.

Approvals / Ratings:

• CE
• cETLus (Control # 5014475)
• IP20
